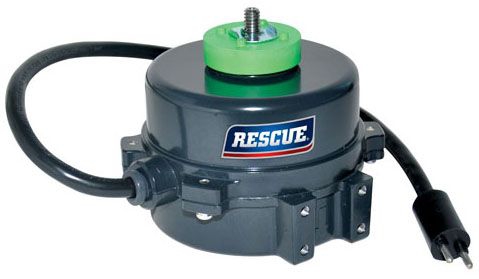

EC5411E NIDEC 4to25 WATT RESCUE ECM MOTOR 115/230V 1550to1725 RPM

Item #: 137583
Manufacturer Item: EC5411
Manufacturer: TCG - US MOTORS BY NIDEC
1/30 HP, 115 to 230 VAC 1-Phase 60 Hz, 0.22 to 0.75 A, 1550 to 1725 RPM, NEMA Frame 33, TEAO, ECM Refrigeration Motor
137583

IP66 Dust Tight with All Angle Moisture Protection

Double Pedestal

Thermally Protected

Robust Ball Bearing System

Standard 3-Hole Style/Hussmann 4-Hole on Back of Motor

Thermal Protection Electronically Protected

Motors-Controls

Power Rating
1/30 HP
Voltage Rating
115 to 230 Volt AC 1-Phase
Speed Rating
1550 to 1725 RPM
Frequency Rating
60 Hertz
Application
HVAC and Refrigeration System
Enclosure Type
TEAO
Motor FLA
0.22 to 0.75 Amp
Number of Speeds
Variable
Mounting
Universal
Approval
UL (Canada and US)
Insulation Class
A
Service Factor
1
Frame Material
Aluminum
Efficiency
65 Percent
