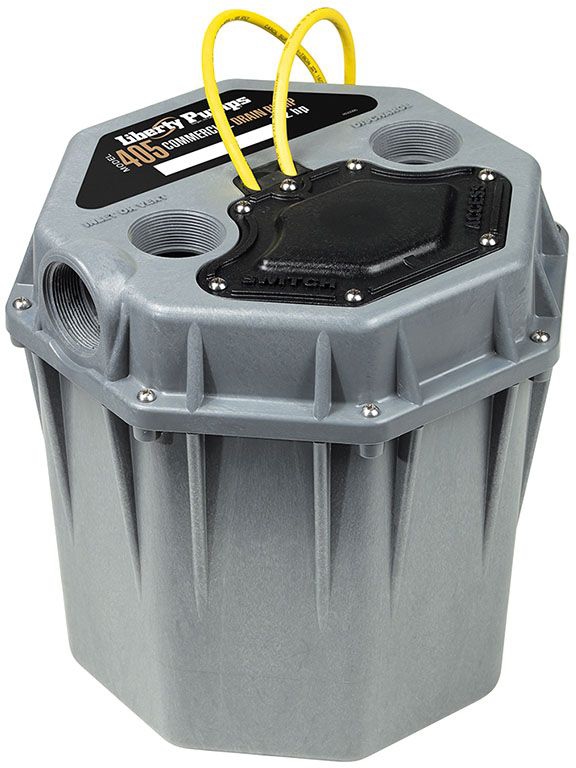

405 LIBERTY HIGH HEAD DRAIN PUMP ASSEMBLY

Item #: 61192
Manufacturer Item: 405
Manufacturer: TCG - LIBERTY PUMPS
2" x 2", FPT x FPT, 5.5 Gallon, 1/2 HP, 3450 RPM, 115 VAC 60 Hz 1-Phase, Automatic Switch, Drain Pump
61192

Factory Pre-Assembled

Fully Automatic Operation

QuickTree® Technology Allows Quick Inspection and Removal of Float Switch without Disconnecting the Plumbing

Integrally Molded Rubber Gaskets for a Superior Gas Tight Seal

Maintenance-Free, Permanently Lubricated Sealed Bearings

Drain

Application
Laundry Tray, Commercial Sink, Bar Sink, Dishwasher, Dehumid
Basin Capacity
5.5 Gallon
Basin Dimensions
13-3/4 Inch Width x 14-1/8 Inch Height
Basin Material
Polyolefin
Casing Material
Polymer
End Connection
Female Threaded x Female Threaded
Housing Material
Deep Finned Powder Coated Aluminum
Impeller Design
Vortex
Impeller Material
Polymer
Inclusions/Features
Power Cord, Grounded Plug
Input Supply Rating
115 Volt AC 60 Hertz 7.3 Amp
Motor Type
Oil Filled, Thermal Overload Protection
Power Cord Length
10 Foot
Power Rating
1/2 HP
Shaft Material
Stainless steel
Shaft Seal Details
Stainless Steel Spring
Speed Rating
3450 RPM
Temperature Rating
180 Deg F
Type
Automatic
Vent Connection
2 Inch Female Threaded
Warranty
3 Year
